TRACE · Toolkit for Retrieval and Analysis of Cyber EvidenceOpen-source digital forensics software.
TRACE opens disk images read-only, organises them into cases, triages what stands out, recovers deleted files and searches inside the evidence – free and open source, on Windows, macOS and Linux.
- file types carved
- 70
- file systems read
- 9
- kinds of encryption unlocked
- 5
- platforms tested
- 4
- free and open source
- MIT
Screenshots

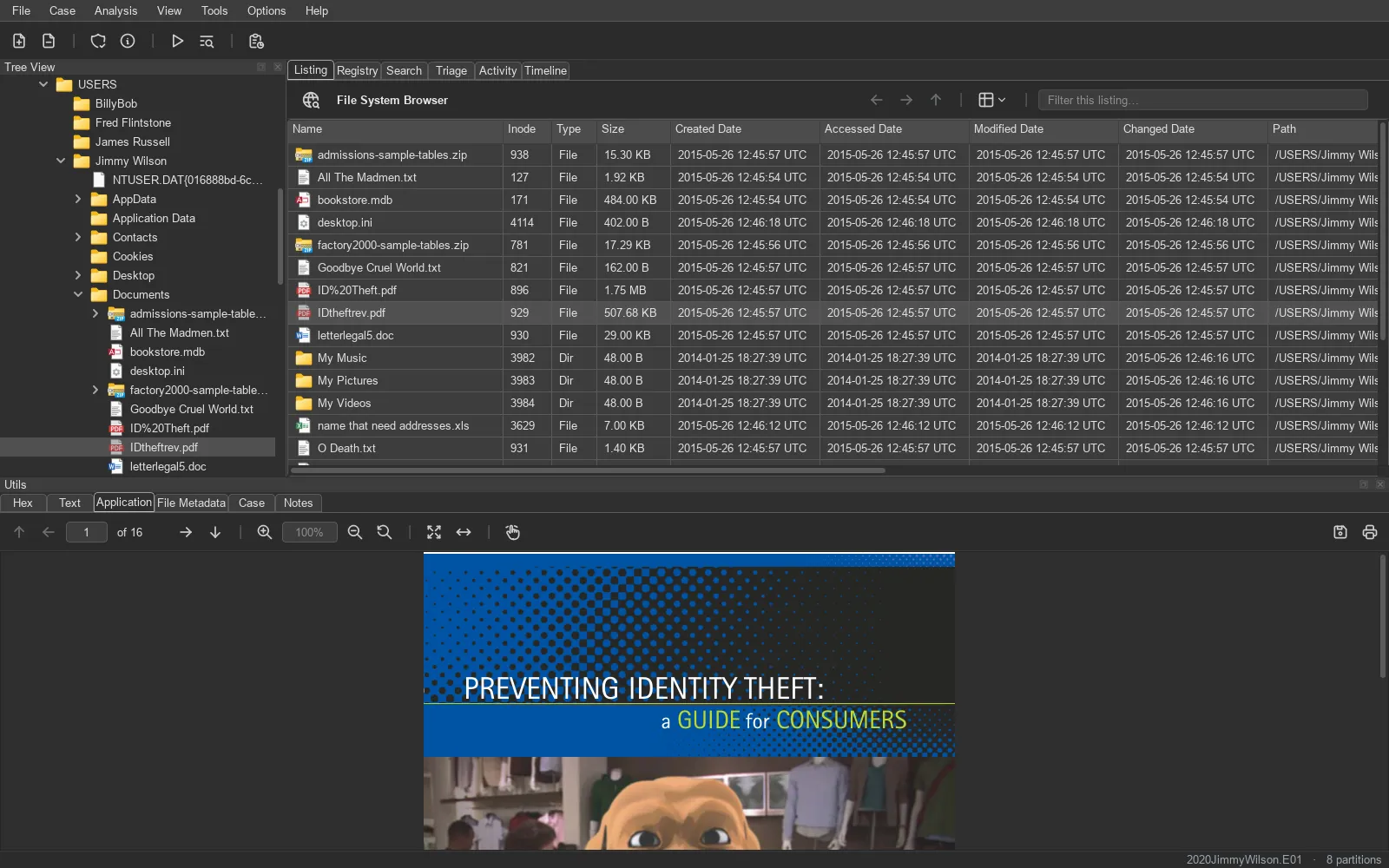

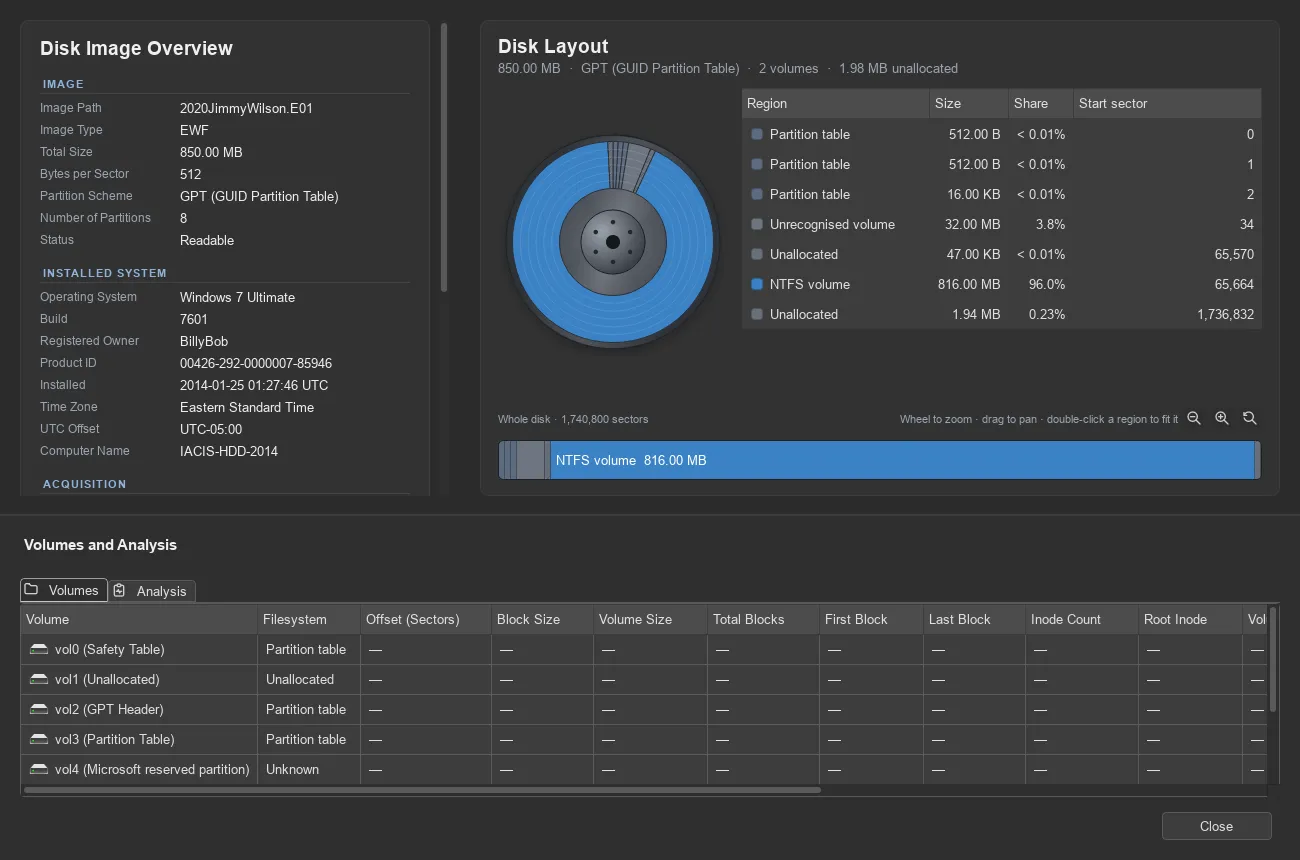

Section titled “Screenshots”One window for the whole investigation: the evidence tree, every timestamp, and a viewer for whatever you select.
What it does
Section titled “What it does”From the first hash check to the final report, in one application that never writes to the evidence.

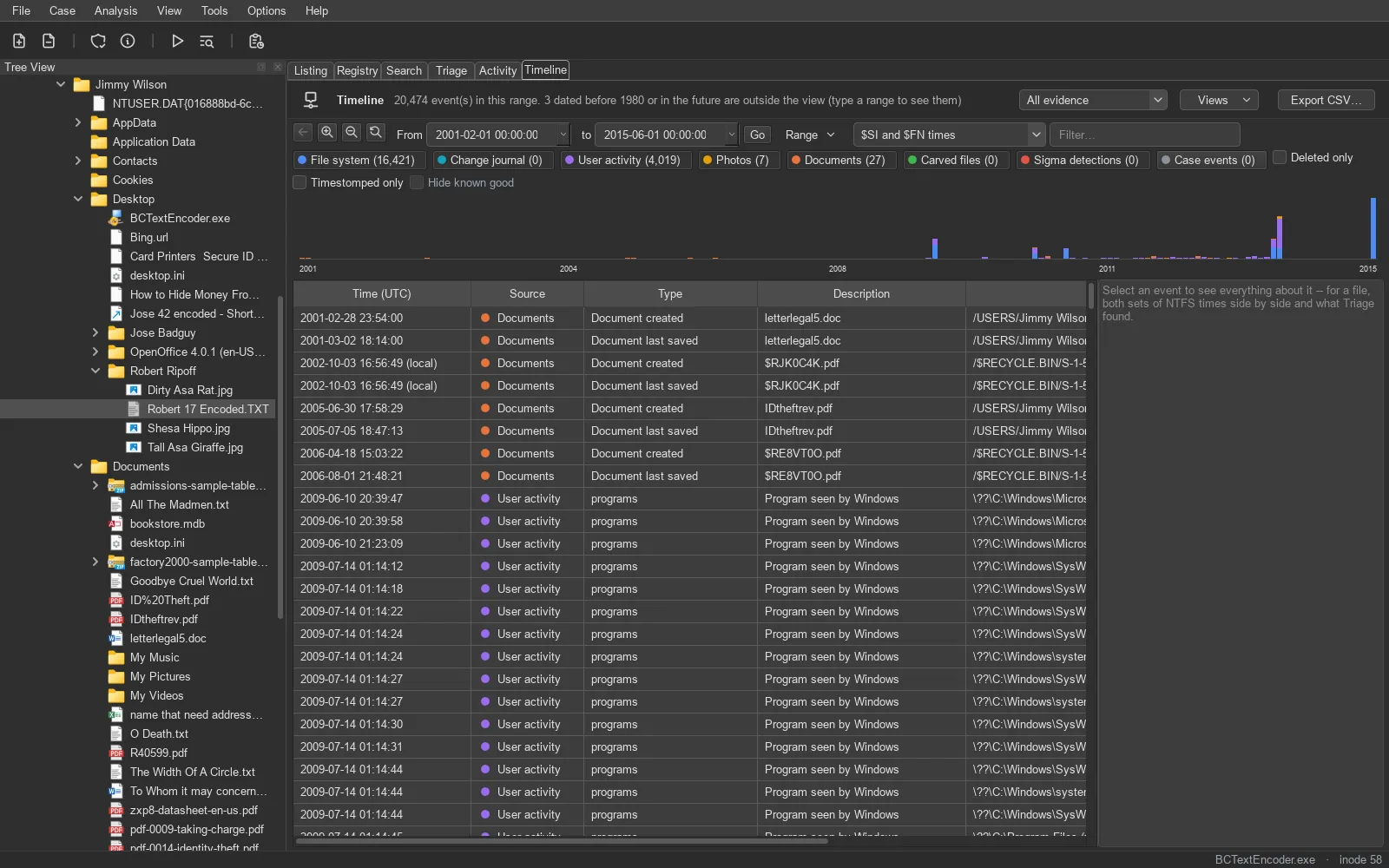

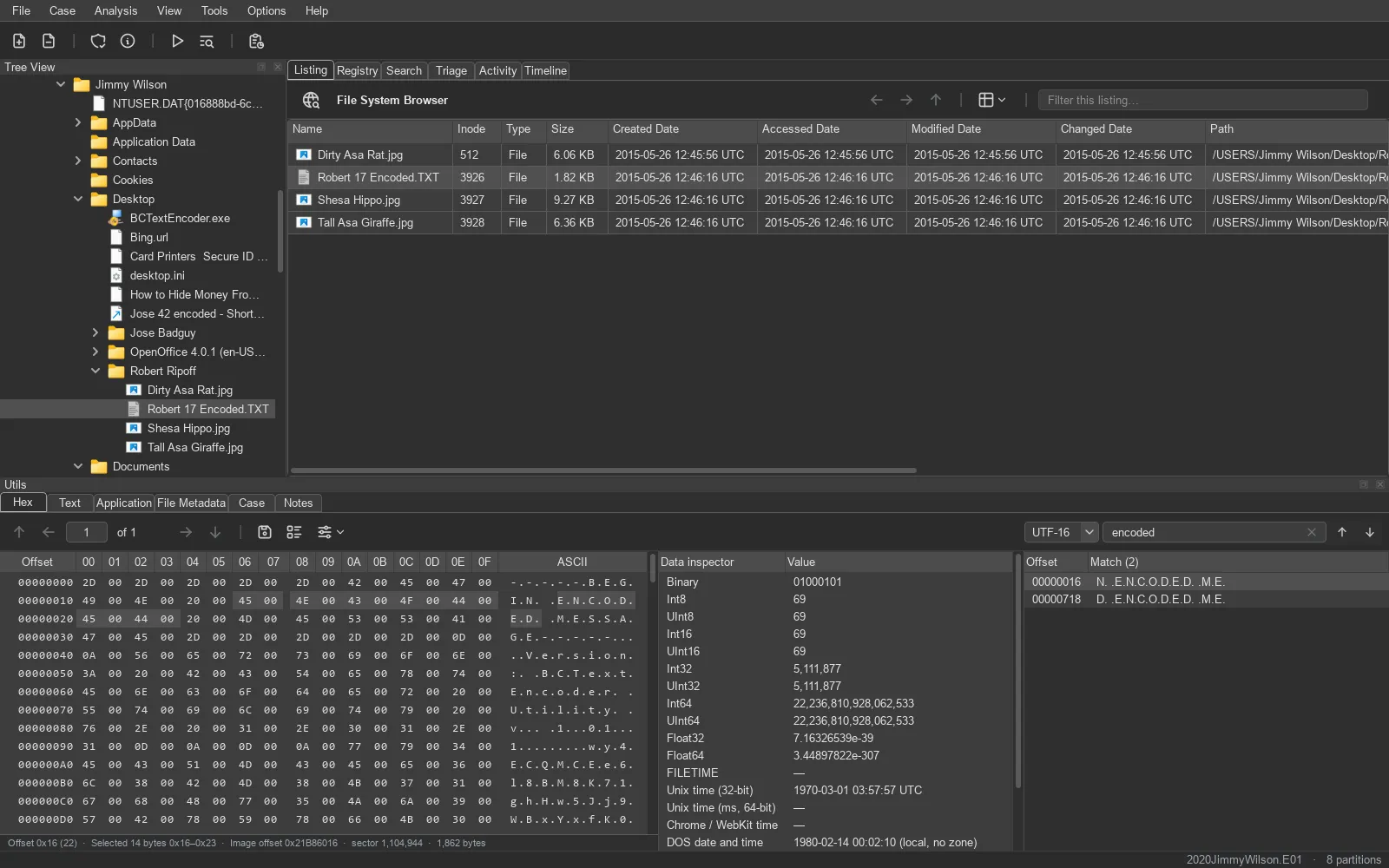

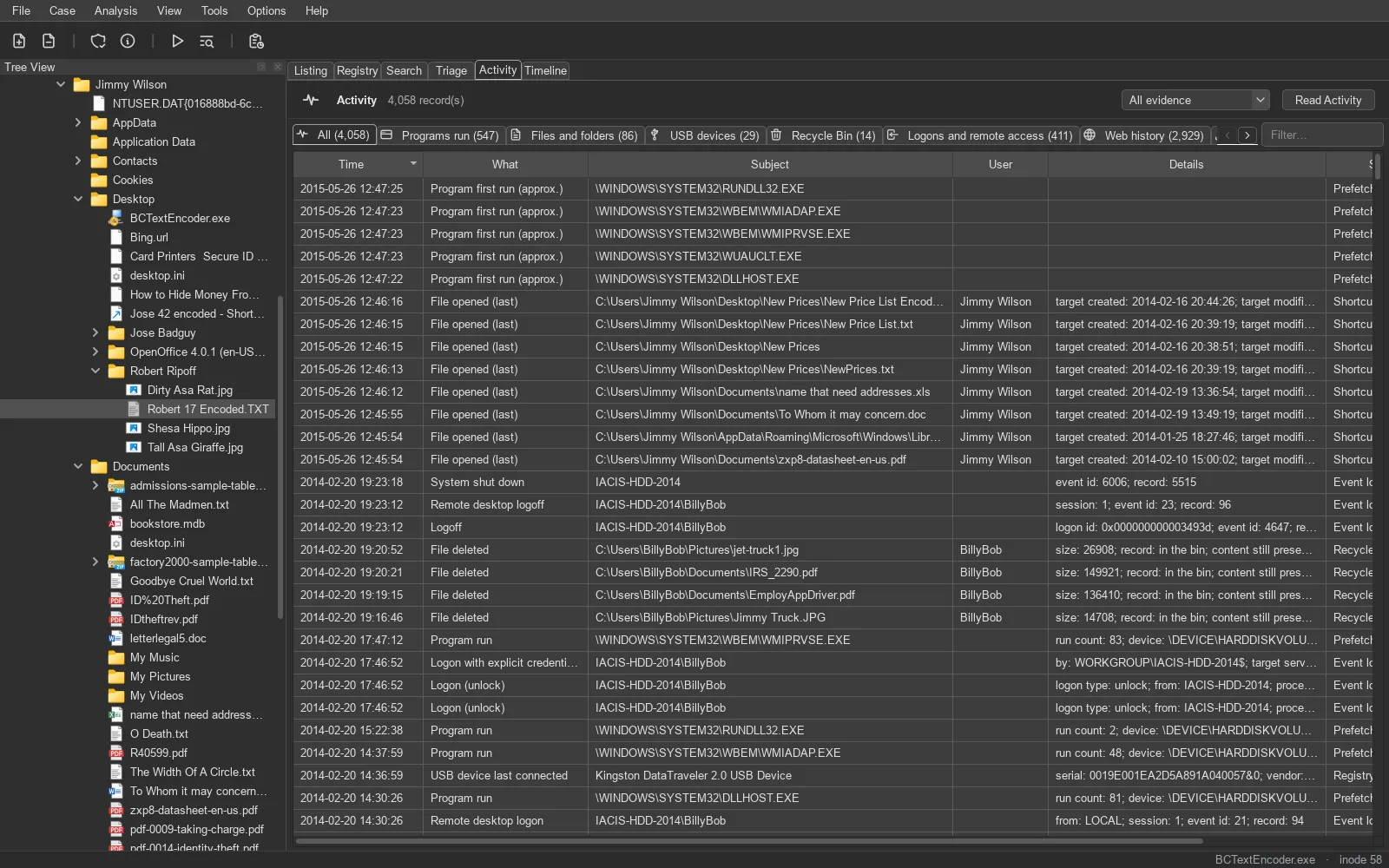

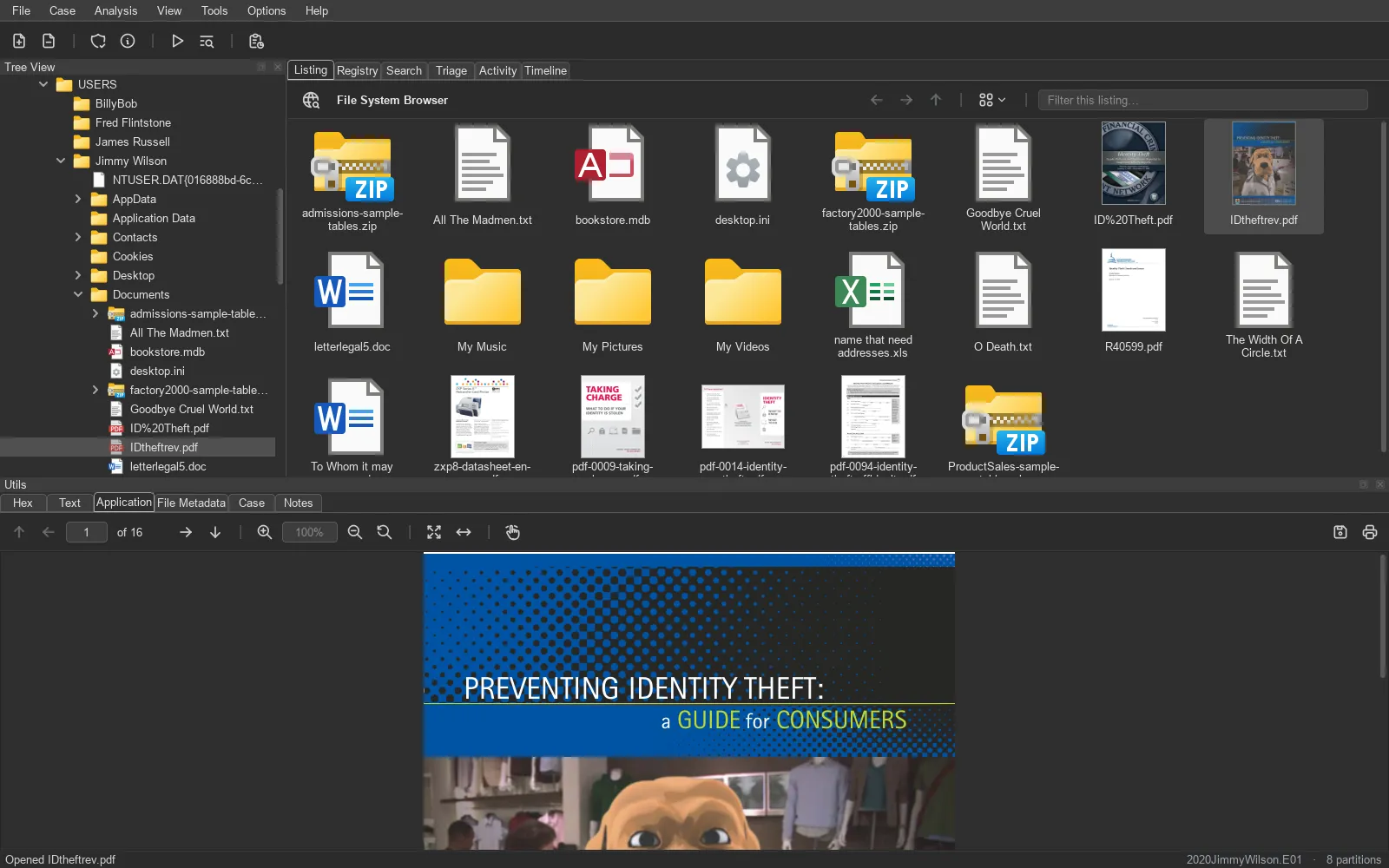

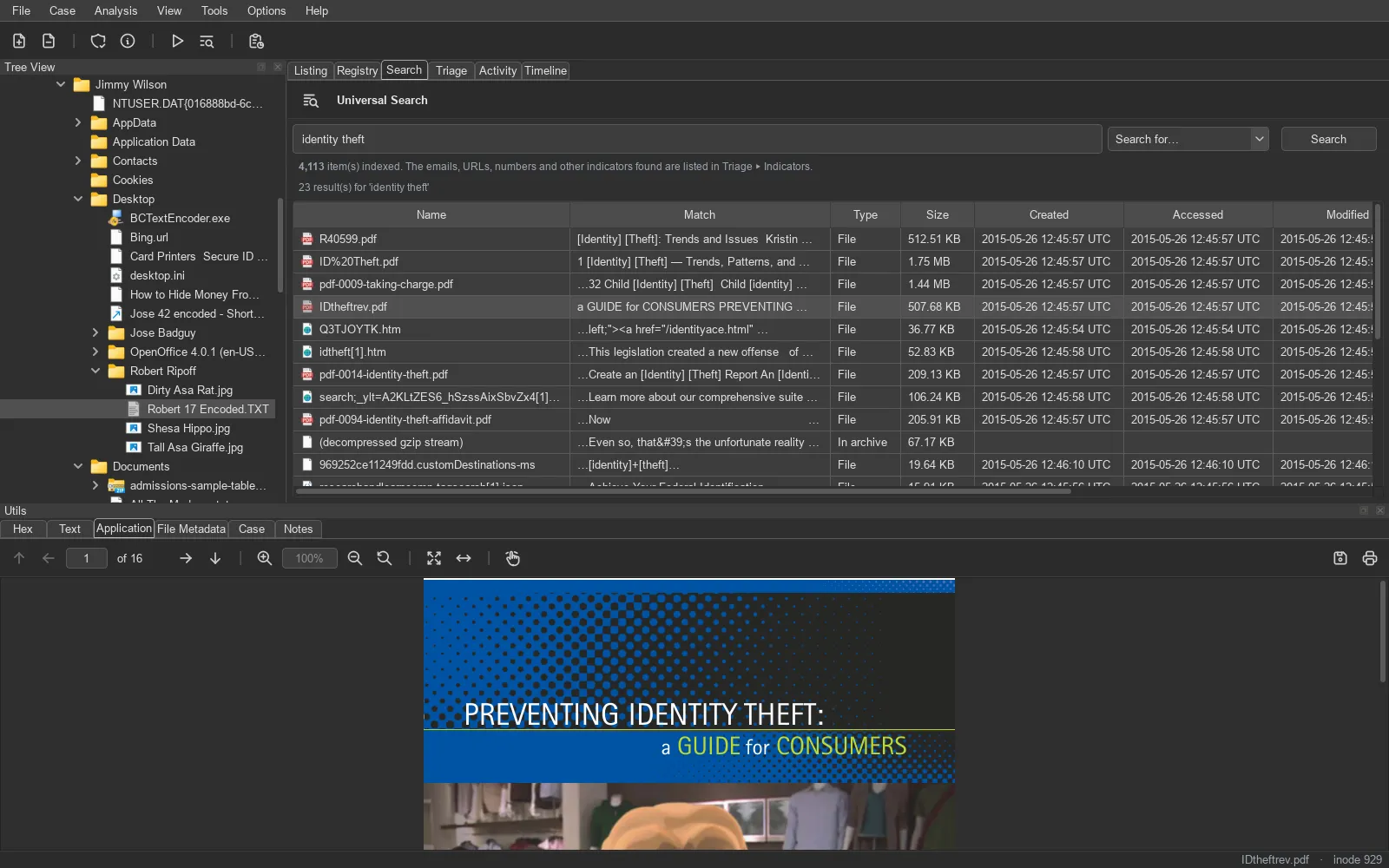

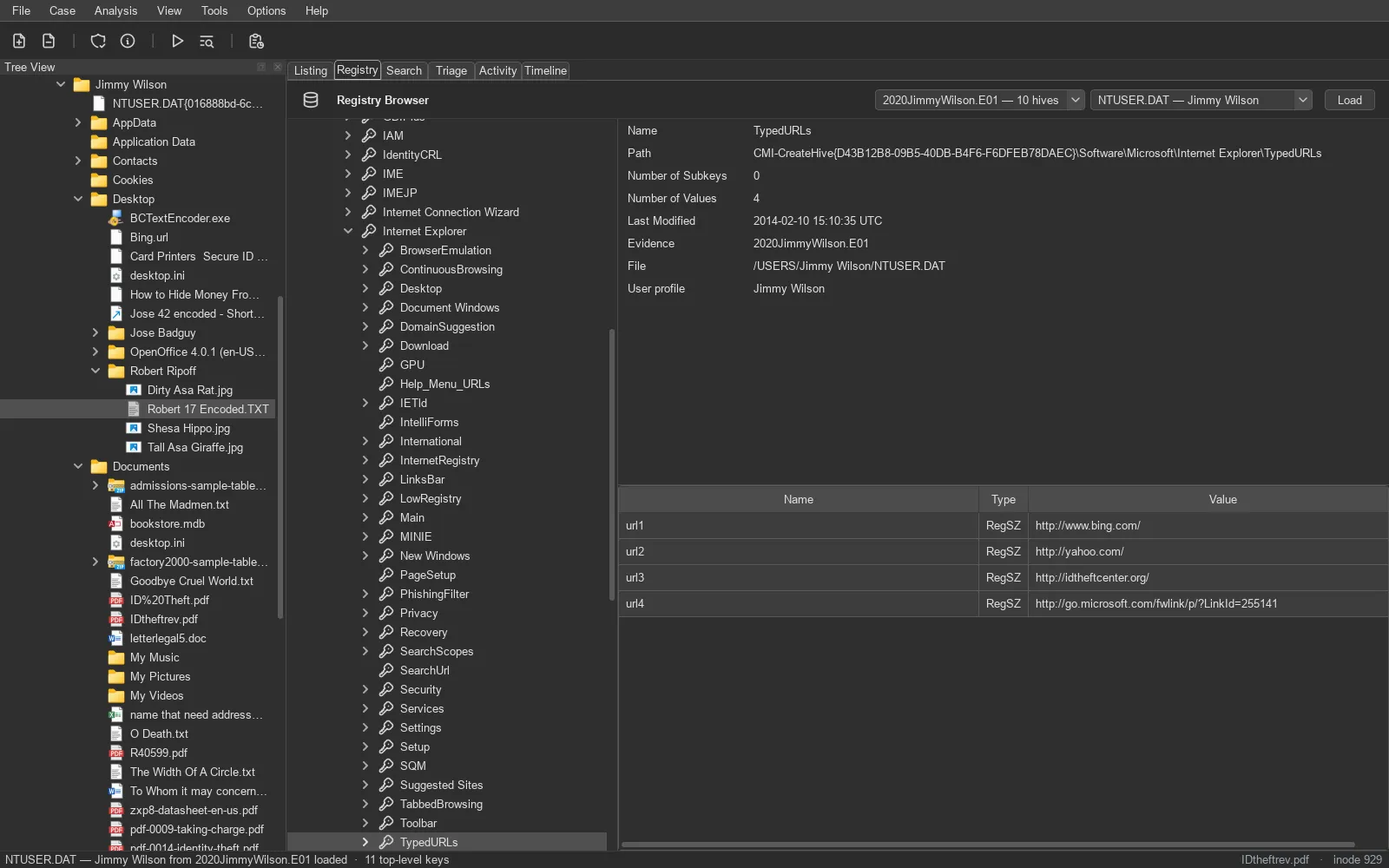

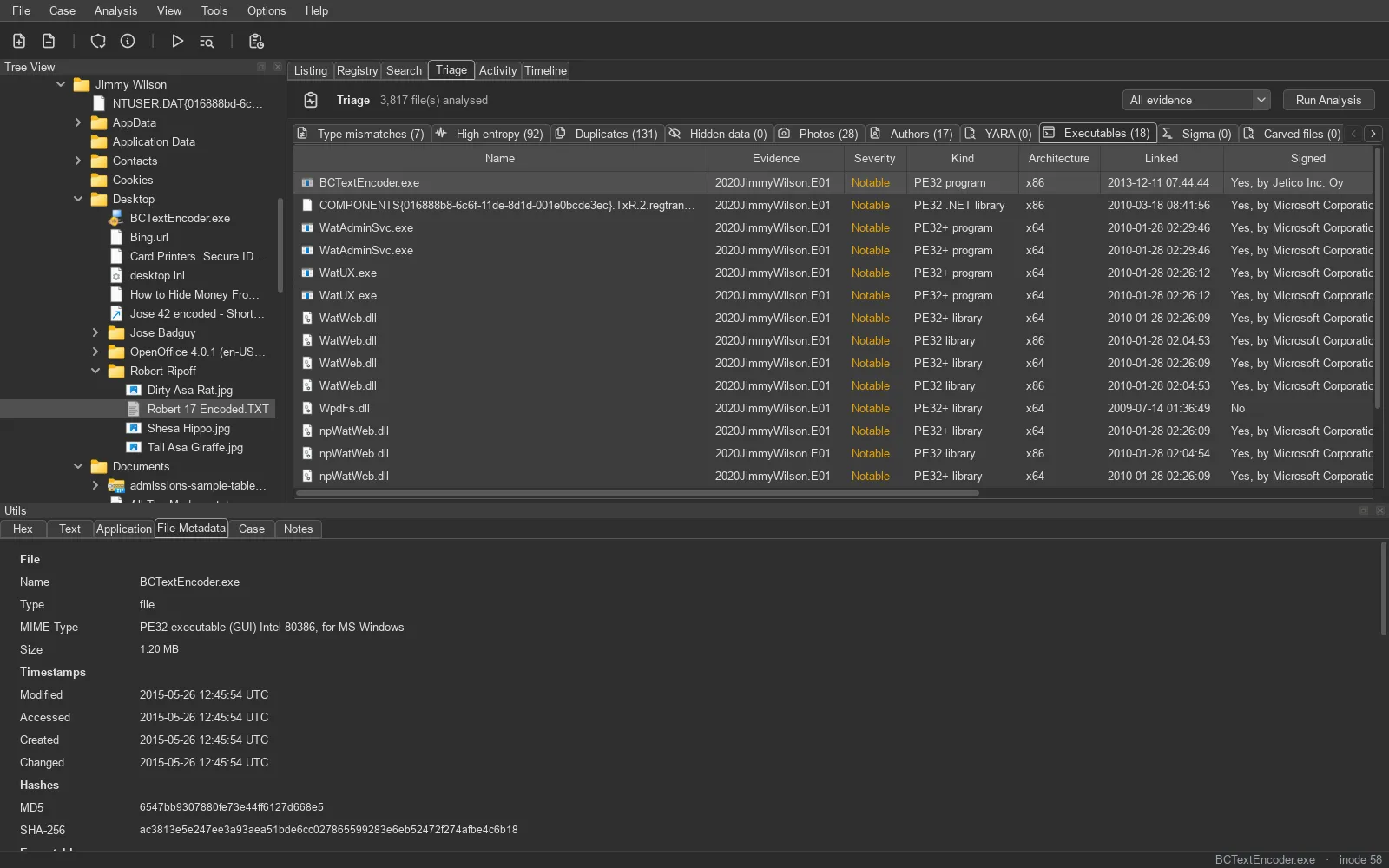

CasesOne investigation, any number of devices – with custody details, an audit trail, bookmarks, notes and a report.Learn more →IntegrityEvidence is never mounted or written to. Hashes are checked against those the image stores, and every check is kept.Learn more →TriageFile types from content, entropy, hidden data, photo GPS, document authors, executables and their signers.Learn more →File carving70 file types from unallocated space or slack, each checked for completeness. Fragmented ZIP and PDF files are rebuilt.Learn more →User activityPrograms run, files opened, USB devices, logons, browser history, chats and phone backups – on one timeline.Learn more →SearchFull-text search inside documents, mail and archives, with e-mails, URLs, phone, card and IBAN numbers found automatically.Learn more →DetectionYARA rules over files, Sigma rules over event logs, keyword lists, hash sets (NSRL) and persistence graded by risk.Learn more →ViewersPictures, video, PDF, Office, mail, SQLite, registry hives, a hex editor with a data inspector, and HTML shown offline.Learn more →Encrypted volumesBitLocker, FileVault 2, LUKS and encrypted APFS unlocked in place; shadow copies, LVM and XFS read too.Learn more →
How it handles evidence
Section titled “How it handles evidence”Read-onlyImages are read, never mounted. A case refers to evidence by path and hash – nothing is copied or changed.
Audit trailVerification is a history, never overwritten. Every action that matters is an audit line in the case.
Offline by defaultNothing leaves the machine unless you say so. HTML from evidence is shown without scripts or network.
TestedTested against published forensic test images and their answer keys, on four platforms, for every change.
Supported evidence
Section titled “Supported evidence”| Disk images | E01 / Ex01, AFF4, raw / dd (split too), ISO, DMG, VMDK, VHD / VHDX, QCOW2 |
| Logical images | AD1, L01, ZIP / TAR, a folder (KAPE, Velociraptor), iOS backups |
| Live disks | an attached disk, read-only, without imaging it first |
| File systems | NTFS, FAT, exFAT, ext2/3/4, HFS+, APFS, XFS, UFS, ISO 9660 |
| Encrypted volumes | BitLocker, FileVault 2, LUKS, encrypted APFS and iOS backups |
| Inside files | archives (ZIP, 7z, RAR, TAR…), PST / OST, EML / mbox, registry hives, event logs, SQLite |
How it is tested
Section titled “How it is tested”File carving is scored, not eyeballed: the real carvers run over public test images and are compared with the answer keys their authors published. A change that loses a file fails the build.
| Test image | Files located | Byte-exact |
|---|---|---|
DFTT #11 11-carve-fat.dd |
15 / 15 | – |
DFTT #12 12-carve-ext2.dd |
10 / 10 | 3 / 3 |
| DFRWS 2006 challenge | 27 / 27 | 12 / 12 |
| DFRWS 2007 challenge | 78 / 114 | 16 / 16 |
| Real-file corpus (63 formats) | 63 / 63 | 63 / 63 |
How TRACE is tested → · Every test image and what it tests →
Get TRACE
Section titled “Get TRACE”Install from source for open code you can read and the newest fixes – or take the standalone app for the quickest start.
Recommended
Install from source
One script sets everything up – Python 3.10 or newer is all you need. No compiler, no Homebrew: every forensic engine installs as a pre-built package.
- Open code – you run the code itself, not an unsigned executable.
- The same code the tests check – installed and tested from scratch on every platform.
- Newest fixes first, and the only way on Linux.
git clone https://github.com/Gadzhovski/TRACE-Forensic-Toolkit.gitcd TRACE-Forensic-Toolkitpowershell -ExecutionPolicy Bypass -File install_windows.ps1venv\Scripts\activatepython main.pygit clone https://github.com/Gadzhovski/TRACE-Forensic-Toolkit.gitcd TRACE-Forensic-Toolkit./install.shsource venv/bin/activatepython main.pygit clone https://github.com/Gadzhovski/TRACE-Forensic-Toolkit.gitcd TRACE-Forensic-Toolkit./install.shsource venv/bin/activatepython main.pyStandalone app Quickest
One download, nothing else to install – each package is self-tested against public disk images before release. It is not signed by a paid publisher certificate, so Windows SmartScreen and macOS Gatekeeper ask you to trust it once, and a packaged build can have problems the source install does not. If something misbehaves, install from source and tell us.
